IP Settings
To be able to communicate with the 1080 sprint or quantum, the IP address of the Bluetooth Network Connection in Windows must be set to the correct value. For Android tablets, see Android tablets.
- IP assignment should be Manual
- IP Address should be either
192.168.250.111or192.168.250.222depending on which type of machine you want to connect to. See table below. - Subnet mask should be
255.255.255.0
| Machine Type | IP Address | Subnet mask |
|---|---|---|
| 1080 Sprint or Single Quantum | 192.168.250.111 | 255.255.255.0 |
| 1080 Quantum (Single machine) | 192.168.250.111 | 255.255.255.0 |
| 1080 Quantum Synchro Left | 192.168.250.111 | 255.255.255.0 |
| 1080 Quantum Synchro Right | 192.168.250.222 | 255.255.255.0 |
In Windows 11
-
From Start, open *Settings
-
Select Network & Internet
-
Select Advanced network settings at the bottom of the screen
-

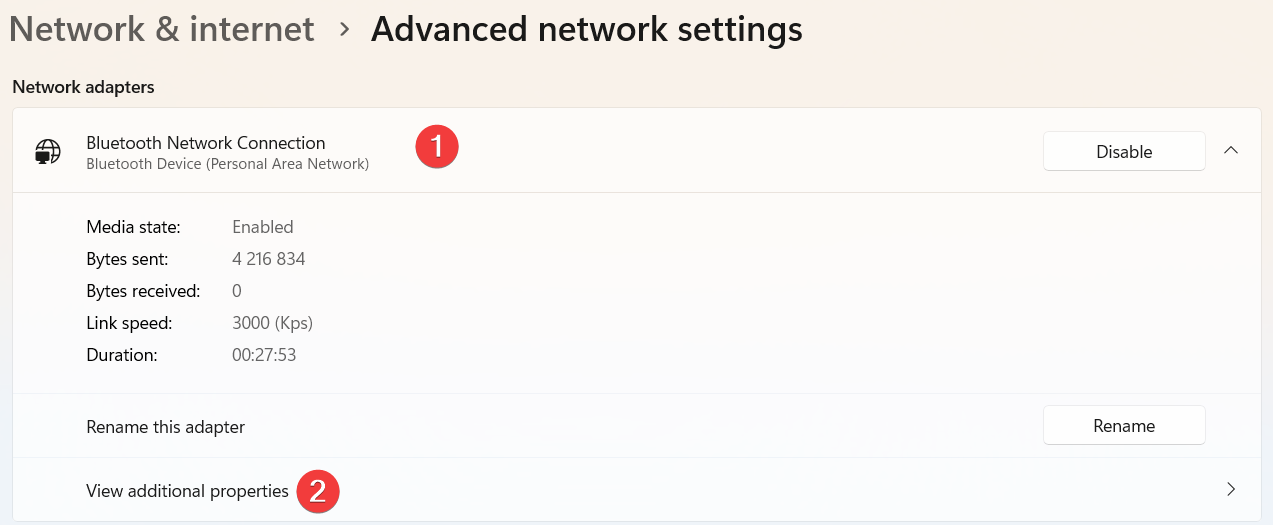

Click on Bluetooth Network Connection and then View additional properties
-

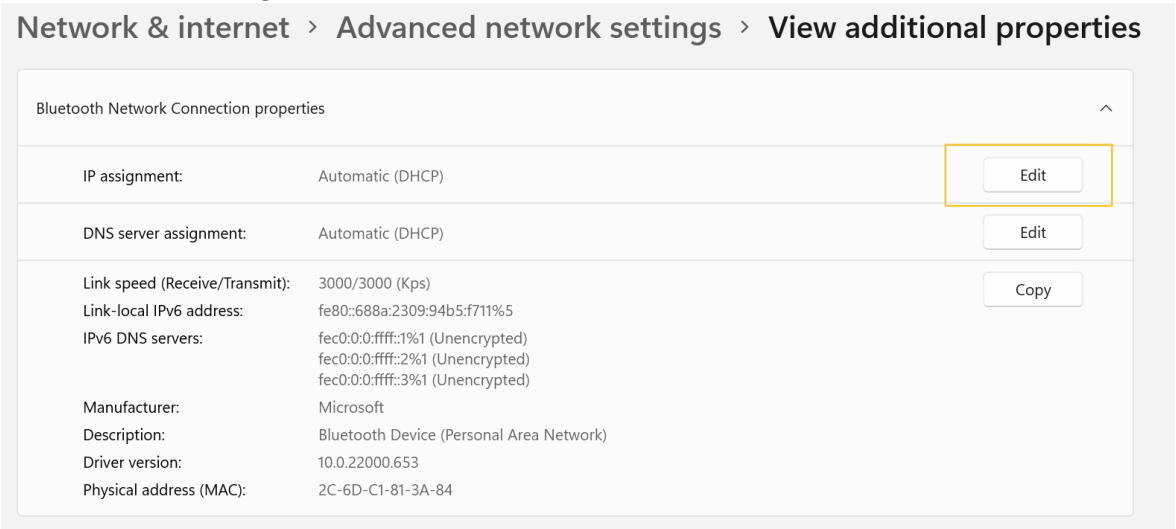

Click Edit on IP assignment
-

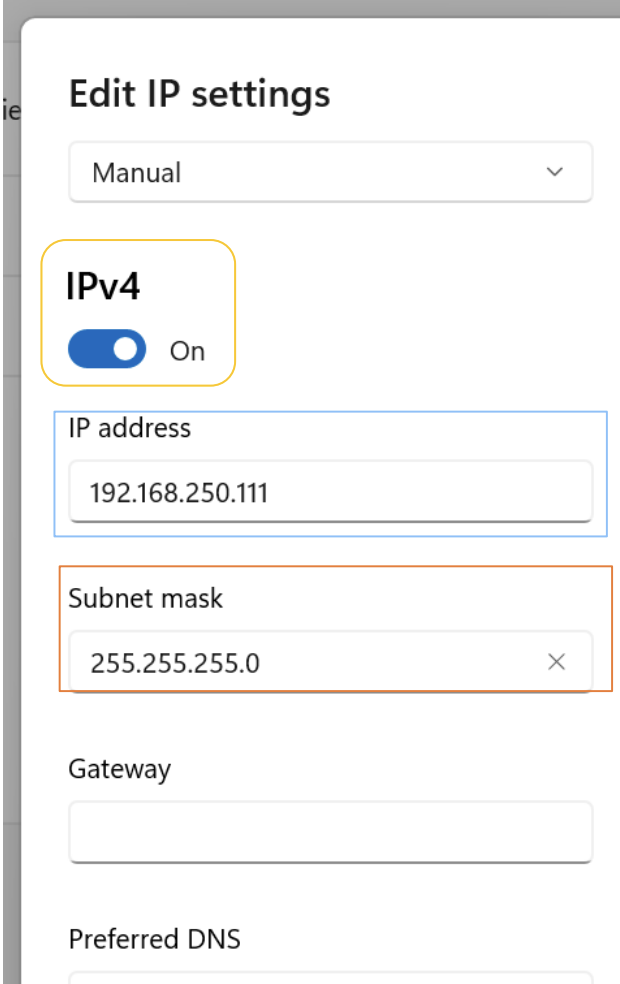

Set to Manual and then enter the correct IP Address and Subnet mask. Don't forget to save.

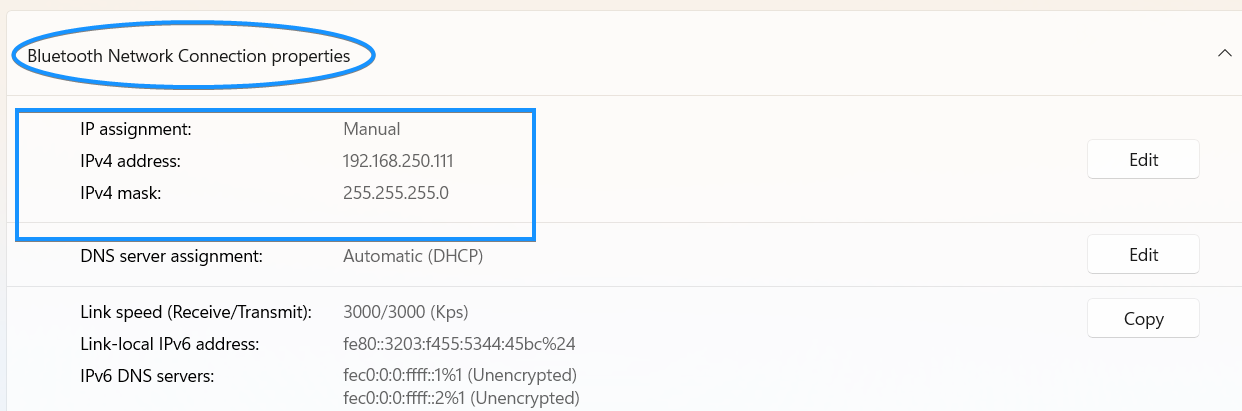

Once done, it should look like this under IPv4:
Note: DNS and IPv6 settings does not matter
Windows 10
-

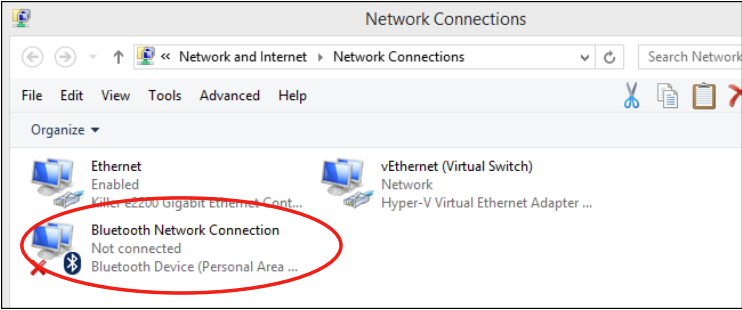

In Windows 10, find the network adapter settings under Network Connections in the control panel
-
Right click the Bluetooth Network Connection icon and select Properties
-

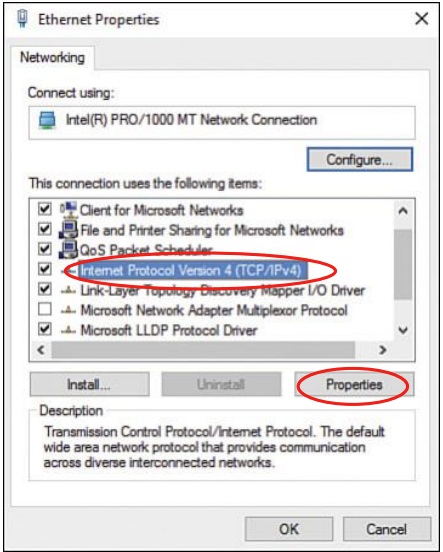

Select Internet Procol Version 4 and click Properties
-

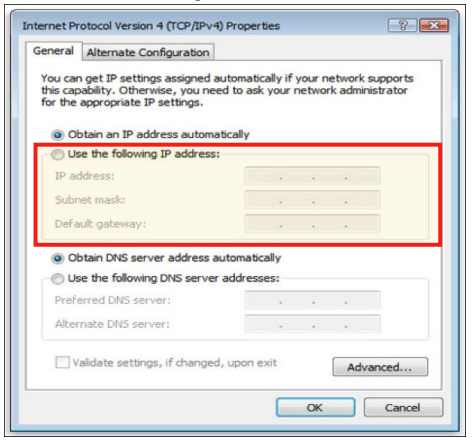

Choose Use the following IP address and enter the correct values according to the table above.
-
Click *OK to save the settings
Android tablets
Android tablets work with Control App 8 only. The machine's Bluetooth unit, the Anybus Wireless Bridge II, must be configured for Control App 8 before an Android tablet can connect. A machine that has been used with Control App 7 needs to be reconfigured first:
- Quantum: you can do this yourself from the Windows tablet you use with it. See Switch to Control App 8 from your Windows tablet.
- Sprint 1: contact 1080 Motion support.
We recommend the Lenovo Idea Tab Pro Gen 2, which has been tested with Sprint 1 and Quantum.
Bluetooth
On the Lenovo Idea Tab Pro Gen 2, connect over Bluetooth. The tablet gets its IP address from the machine automatically, so there is nothing to set.
Not all Android tablets work over Bluetooth
Many Android tablets, including the Samsung tablets we have tested, cannot connect to Sprint 1 or Quantum over Bluetooth. On those tablets, use a USB-C to Ethernet adapter instead.
USB-C to Ethernet adapter
Use a USB-C to Ethernet adapter on tablets where Bluetooth does not work, such as Samsung tablets. On a Quantum, you connect the adapter to the network cable at the back of the machine. On a Sprint 1, contact 1080 Motion support. Never open the machine.
With a network cable, the tablet does not get an address automatically, so you need to give the adapter the IP address and subnet mask from the table above.
Set the address before you turn on Ethernet
Enter and save the address settings while Ethernet is turned off, and turn Ethernet on afterwards. If Ethernet is already on when you change the settings, the tablet may keep using the old settings and cannot reach the machine. If that happens, turn Ethernet off and on again.
- Connect the USB-C to Ethernet adapter to the tablet, and connect the adapter to the network cable at the back of the Quantum.
- Open Settings and find the Ethernet settings. On Samsung Galaxy tablets, go to Connections > More connection settings > Ethernet. The menu names can differ between tablet makers.
- Make sure Ethernet is turned off.
- Open the Ethernet configuration and set the connection type to Static IP (sometimes called Manual).
- Enter the IP address and Subnet mask for your machine from the table above, and save.
If the tablet asks for a network prefix length instead of a subnet mask, enter
24. - Turn Ethernet on.
