Machine Connection

Control App version 8 is available for Windows, Android, and macOS. See platforms and downloads. The pairing, firewall, and network settings instructions linked below describe Windows setup.

Quantum and Sprint 1 support Control App 8 on all three platforms, but the connection method depends on your device. Sprint 2, Cable, and Squat connect over Wi-Fi or USB-C cable.

Connection options for Quantum and Sprint 1

Control App platformConnection to Quantum and Sprint 1
WindowsBluetooth or Ethernet.
AndroidBluetooth on supported tablets, or Ethernet. Some Android tablets, particularly Samsung models, cannot connect to these machines over Bluetooth; use Ethernet instead.
macOSEthernet only. Bluetooth connections to these machines are not supported.

If your Quantum was set up for Control App 7, configure its Anybus unit before connecting with Control App 8 or Android. Follow Configure the Anybus Wireless Bridge II. New Quantum machines and new Bluetooth units already have the correct settings.

NOTE:

A bluetooth machine needs to be paired with the tablet/PC first. See Pairing for details.

A Wi-Fi machine need to be connected to the same network as the tablet/PC.

Machines are connected using the "Connect to machine" dialog accessible from the title bar of the application

Bluetooth (Quantum/Sprint 1)

These Windows instructions apply to Bluetooth connections. On macOS, use Ethernet. On Android, Bluetooth support depends on the tablet; use Ethernet if your tablet cannot connect over Bluetooth. For Quantum units set up for Control App 7, follow Configure the Anybus Wireless Bridge II before using Control App 8 or Android.

  1. Turn the machine on and ensure it is within range of the PC/Tablet. 0-15 meters is best, but under ideal conditions bluetooth can work fine up to 100m away from the machine

  2. The dialog that appears will list any bluetooth machines that have been paired to this PC/tablet.

    The icons to the right of the machine names represents the following:

    • green circle: the machine is connected with bluetooth to the current PC/tablet.
    • blue circle: the machine is turned on and within range of the tablet
    • gray circle with diagonal line: the machine is not within range, or it is not responding
  3. Select your machine anc click Connect. After a few seconds you should be connected.

If the connection attempt fails, just try again. In most cases, the second attempt will succeed

Ethernet (Quantum/Sprint 1)

Use Ethernet to connect Quantum or Sprint 1 to Control App on macOS. Ethernet is also an option on Windows and Android, including Android tablets that cannot connect to these machines over Bluetooth.

For a Quantum set up for Control App 7, follow Configure the Anybus Wireless Bridge II before using Control App 8 or Android. See Android Ethernet setup for adapter and address instructions. Contact 1080 Motion Support if you need help with your Ethernet setup.

Wi-Fi (Sprint2/Cable/Squat)

Make sure "Enable Sprint2/Cable Support" is enabled.

The windows firewall by default prevents 1080 machines from being discovered. The first time you use this dialog to connect to a Wi-Fi machine, press the Configure Firewall button.

After successful configuration, restart the application to ensure the new firewall rules are applied correctly.

  1. Turn the machine and make sure it is connected to the same network as the PC/Tablet

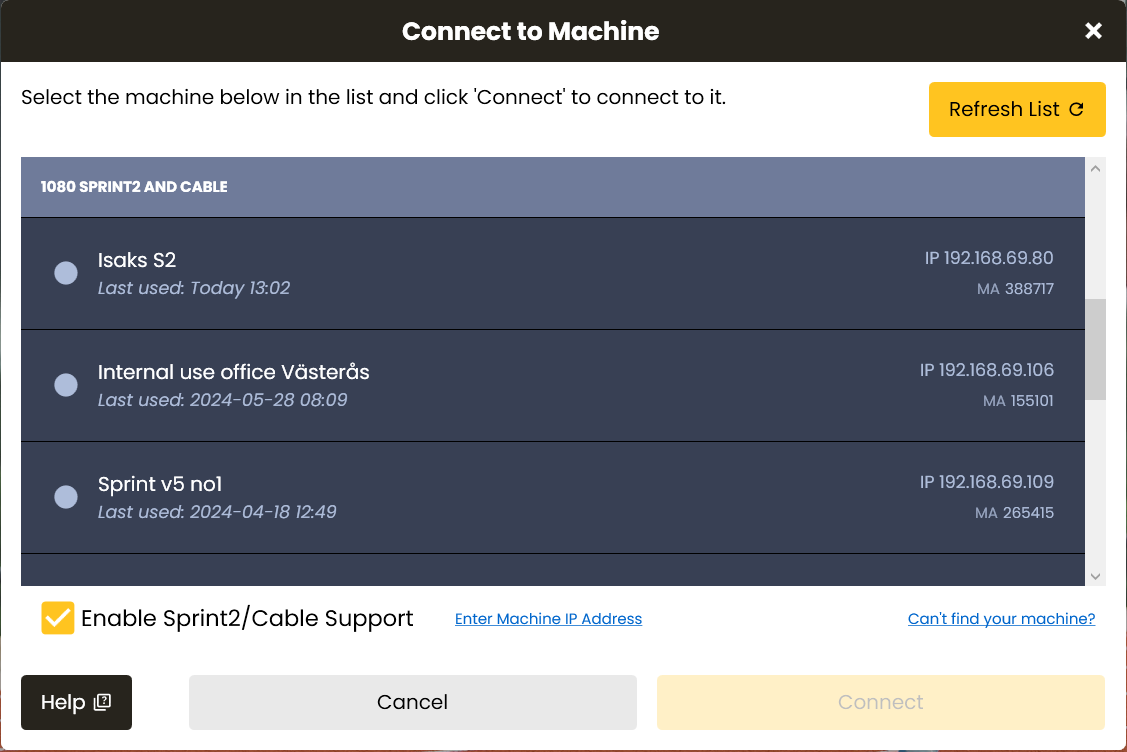

  2. The dialog will initiate a scan of the local network looking for machines. If the machine does not appear immediately, press the Refresh button.

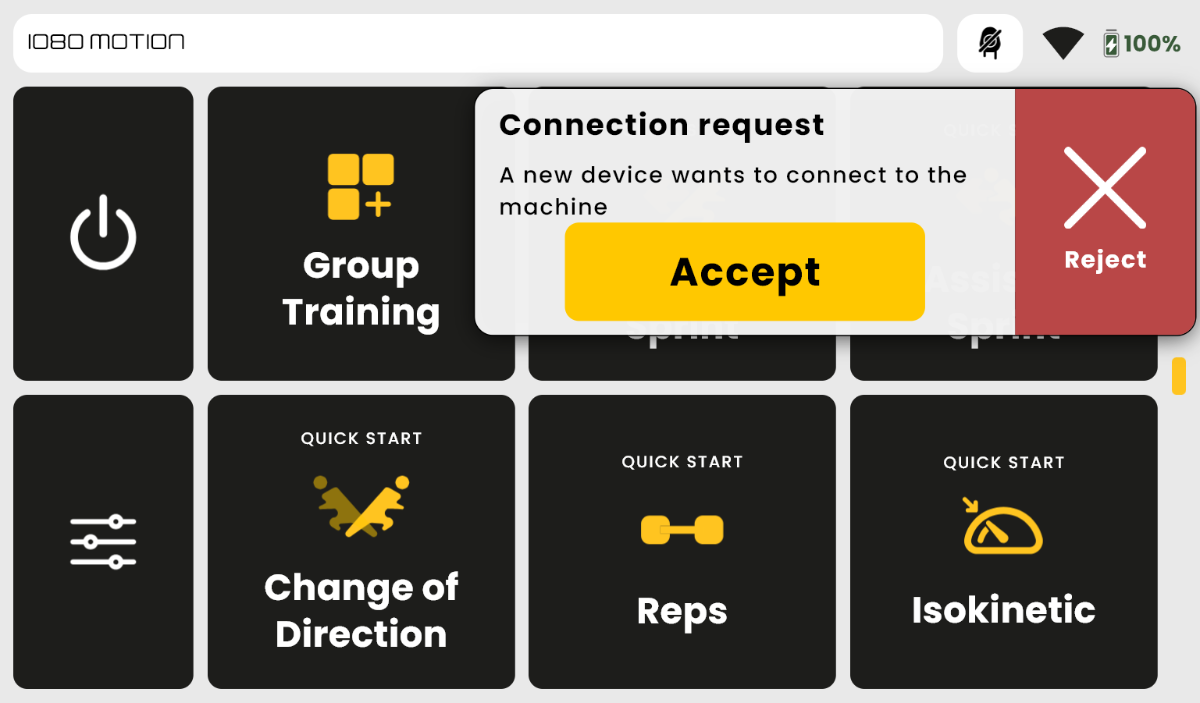

  1. Select the machine and click "Connect". This will send a connection request to the machine that need to be accepted

Once the connection has been accepted and established, the screen should refresh and show the resistance bar at the bottom allowing you to control loads, modes and speed limits.

USB-C cable (Sprint2/Cable/Squat)

When the machine and tablet are connected with a USB-C cable, a private network is automatically setup between them.

  1. Turn the machine on and connect the USB-C cable to the tablet and the machine
  2. Open the "Connect to machine" dialog and select it from the list. If it does not appear, press the "Refresh" button.
  3. Click "Connect" and the machine should be connected - no need to accept the connection on the machine.

Hint: If the machine is turned on and the USB cable is connected when the tablet software is started, the machine will automatically connect (no need to go through "Connect to machine")

If the machine does not appear in the list, use the Enter Machine IP Address button and enter the IP address of the machine manually: 169.254.255.1

Troubleshooting

If the connection fails, or the machine does not appear in the list, see Troubleshooting Machine Connections for more information.
