Troubleshooting Nozzle Issues for Smooth Line Retraction
Sometimes the nozzle can accumulate dirt and dust, which may cause the machine to have problems retracting the line.
Tools Needed
- Optional: Poligrip (pliers)
Avoid scratching
If you use Poligrip, cover the pincers with cloth or similar to prevent scratching the nozzle.
Steps to Troubleshoot
-

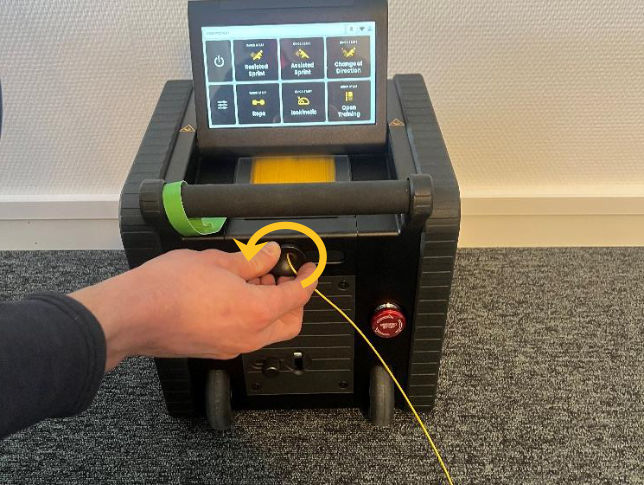

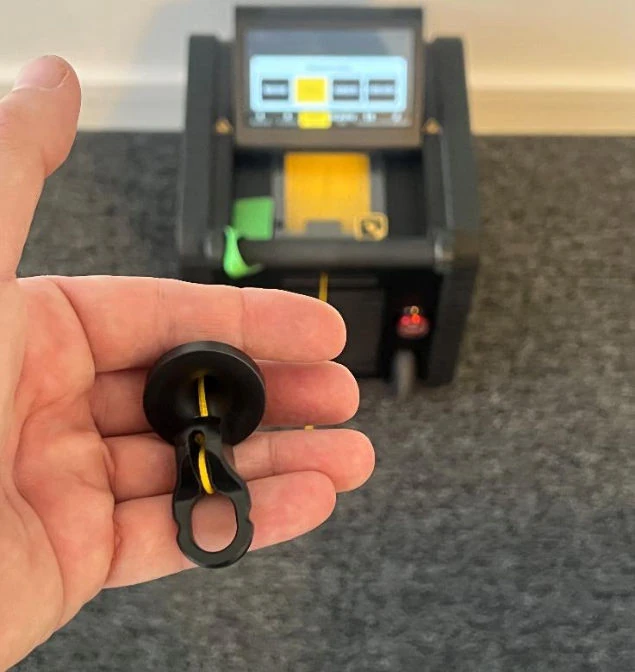

Remove the nozzle
- Grab the nozzle with your fingers or Poligrip.
- Turn it counterclockwise to remove it.
-

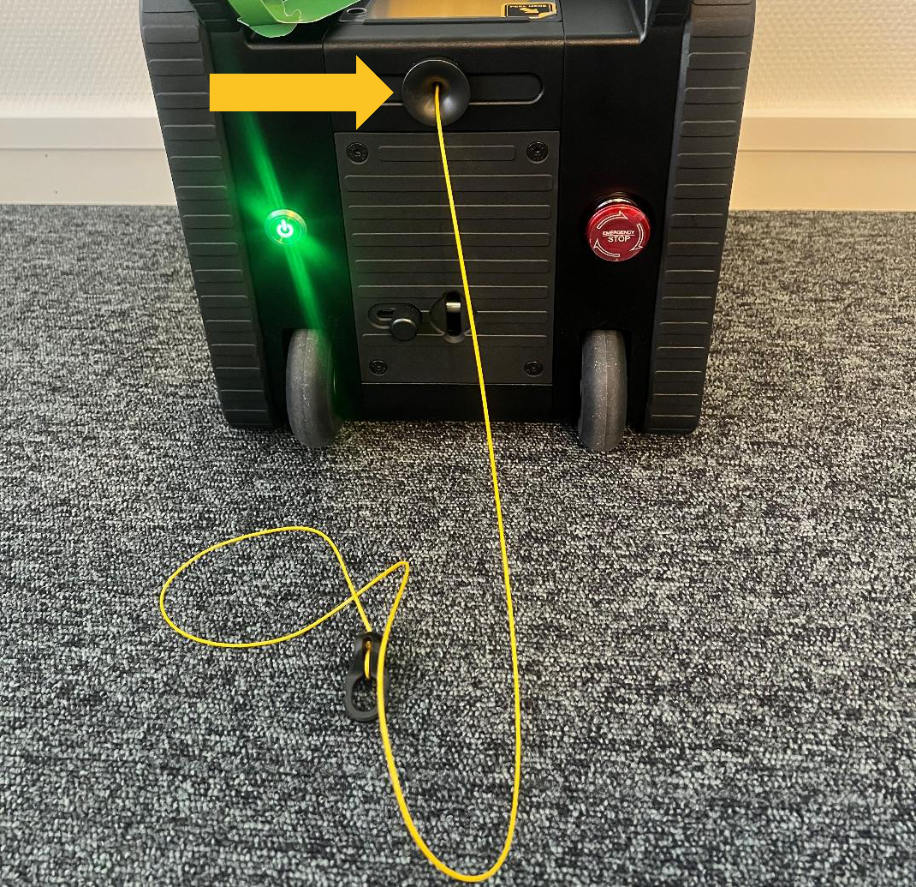

Test retracting the line
- With the nozzle removed, use the Set Zero Position function to retract the line.
Results
-
If the line retracts normally: The nozzle is clogged. ā Contact support@1080motion.com or your local partner, and we will send you a new nozzle with a larger hole diameter.
-
If the line still will not retract: Please contact support@1080motion.com or your local partner for further troubleshooting.
Need more help? Email us at support@1080motion.com
