How to remove the battery on Sprint 2

Tools needed:

• Allen key 5 mm
• Allen key 4 mm

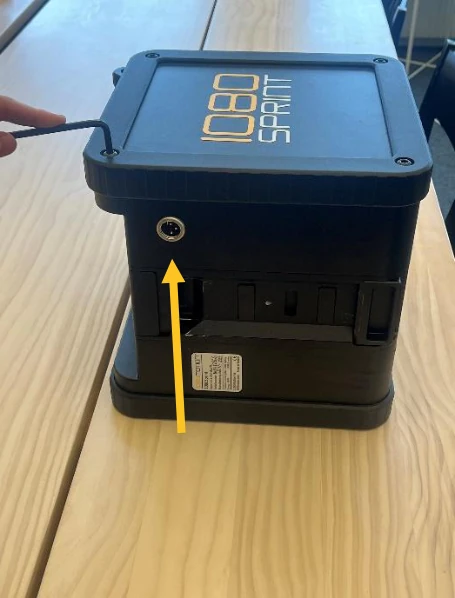

Step 1

Place the machine, on the side, with the “charger side”up.

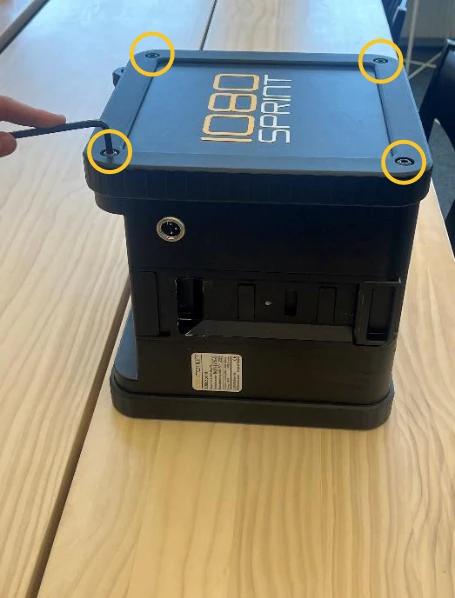

Step 2

Remove the four corner screws, with the 5mm Allen key.

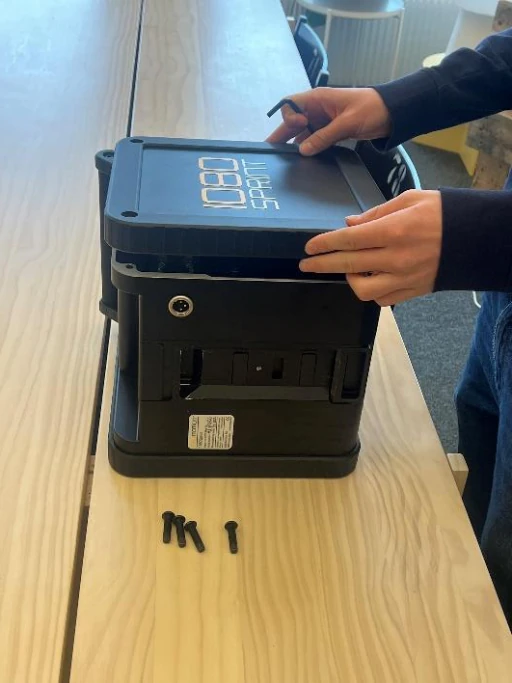

Step 3

Remove the side panel.

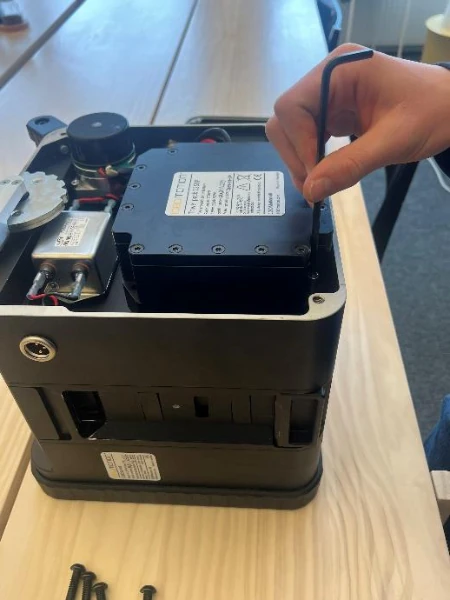

Step 4

Remove the four screws in the corners of the battery-pack, with the 4mm Allen key.

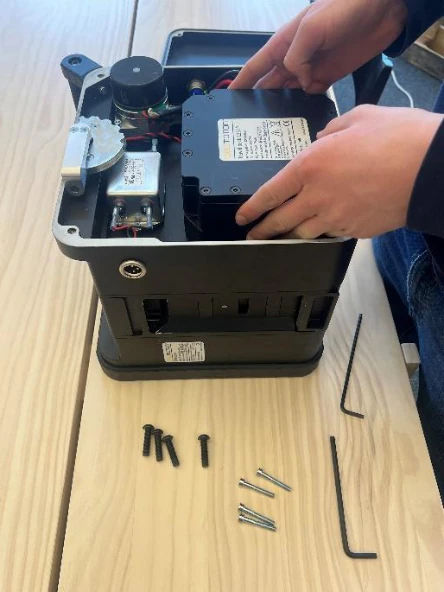

Step 5

Remove the battery-pack by lifting it straight up.
